FlexelTouch Touch Screen Thermostat
FlexelTouch Touch Screen Thermostat
£125.71
Price includes VAT Shipping calculated at checkout.

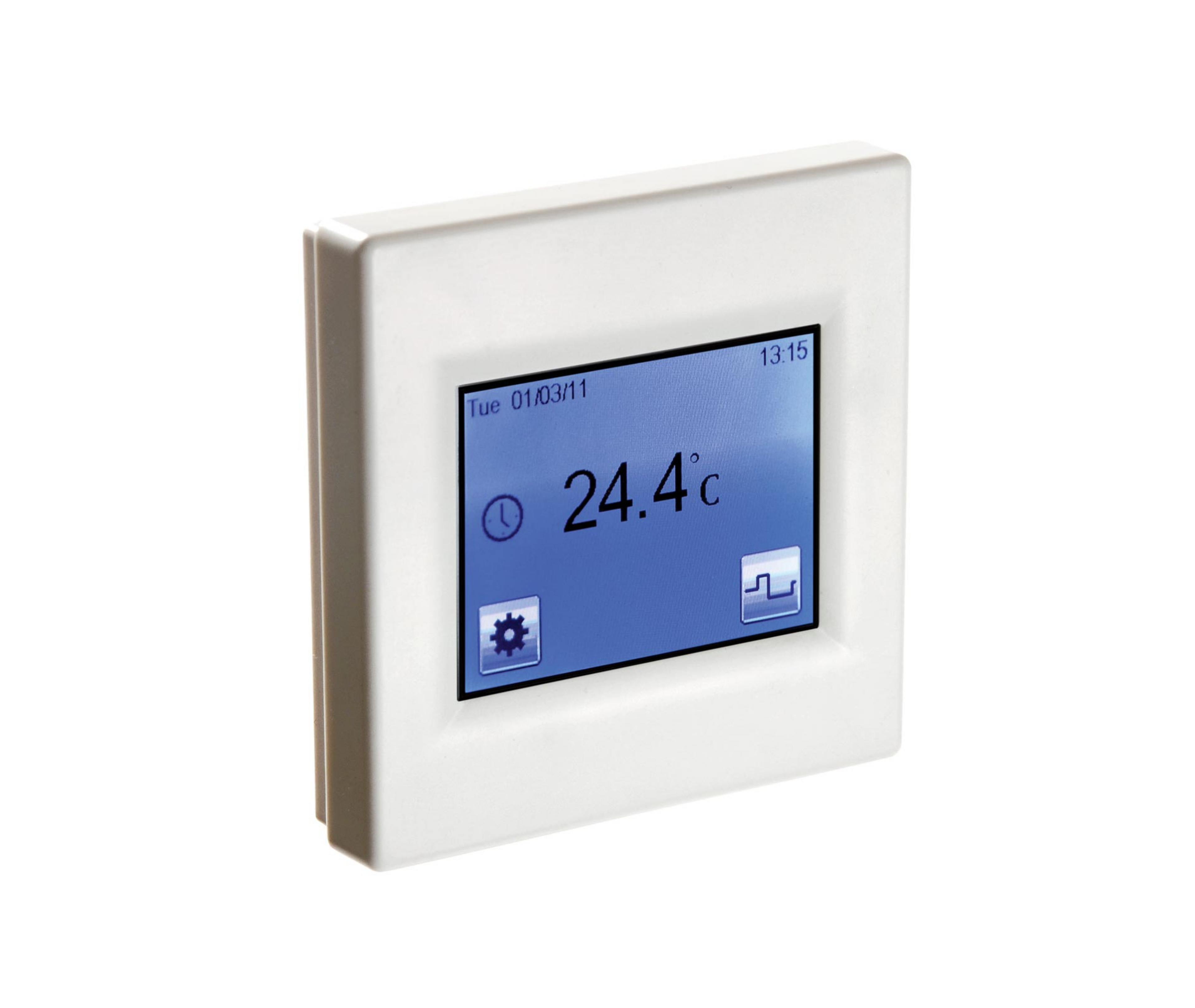

The FlexelTouch is a programmable thermostat with a bright colour touch screen, ideal for controlling electric underfloor heating and infrared heating panels. Setting it up is refreshingly simple, as on-screen prompts take you through each step and your schedule can be running within minutes.
Choose from white, black or silver, and every thermostat comes with a 3 m floor probe in the box.
Full features, controls, installation notes and specifications are below.
Have any questions? Click here to contact our support team
Key features
- Large backlit colour touch screen that is clear and easy to read
- Step-by-step programming on the display, so everyday changes never need the manual
- Four built-in preset schedules to get the heating working as soon as it is fitted
- Several time and temperature periods per day, so rooms are only warm when you need them
- Energy monitor showing how much power the heating has used and at what times
- Screen colours and display style can be personalised
- Available in white, black or silver to suit your decor
Controls and compatibility
- Switches loads of up to 16 A (3680 W) at 230 V AC
- Suitable for electric underfloor heating and infrared heating panels within that load
- Floor probe supplied (NTC type on a 3 m lead) for floor temperature sensing
- Works with external sensors rated 10K, 12K or 15K at 25 °C
- An optional Remote Auxiliary Sensor (RAS) can be chosen from the options on this page
- A replacement floor probe (ET16PR) is also available as a spare part; you do not need it with a new thermostat
Installation
- Needs only 22 mm of installation depth
- Mains wiring must be carried out by a qualified electrician
- Our official installation partner, Standard Electrical Services, can install the thermostat with your heating
What's included
- FlexelTouch thermostat in your chosen finish
- 3 m NTC floor probe
Video
Our short guide shows how to set up the FlexelTouch and adjust the floor temperature settings.
Specifications
| Product codes | ET16W (white), ET16B (black), ET16S (silver) |
| Electrical protection | Class II |
| Maximum load | 16 A, 230 V AC, 3680 W |
| Floor sensor | NTC, 3 m lead (supplied) |
| External sensor compatibility | 10K, 12K or 15K at 25 °C |
| Dimensions (H x W x D) | 90 x 90 x 19 mm |
| Installation depth | 22 mm |
| Approvals | EN 60730-1:2003 |
| Warranty | 3 years |
Downloads
Need help choosing?
Browse our full thermostat range, call us on 01342 645021 or get in touch and we will point you to the right control for your heating.
