Flexel ECOSUN UB Infrared Heating Panel
Flexel ECOSUN UB Infrared Heating Panel
Price includes VAT Shipping calculated at checkout.
The Flexel ECOSUN UB is a slim white infrared panel that warms people and surfaces directly instead of heating the air first. Rooms feel comfortable at a lower thermostat setting, which helps keep running costs down in homes, offices and shops.
Mount it on a wall or flat on the ceiling. One panel can take the chill off a single area, or several can be planned together to heat a whole building.
Not sure which size? Use our heating calculator to see how much heat your room needs and what it costs to run.
Full features, controls, installation notes and specifications are below.
Key features
- Galvanised steel body with a semi-smooth white powder-coated finish
- Insulated back, so the heat is sent forwards into the room rather than into the wall or ceiling
- Suitable for wall or ceiling mounting, with a ceiling mounting frame supplied
- Built-in thermal overload protection
- No moving parts and nothing to service

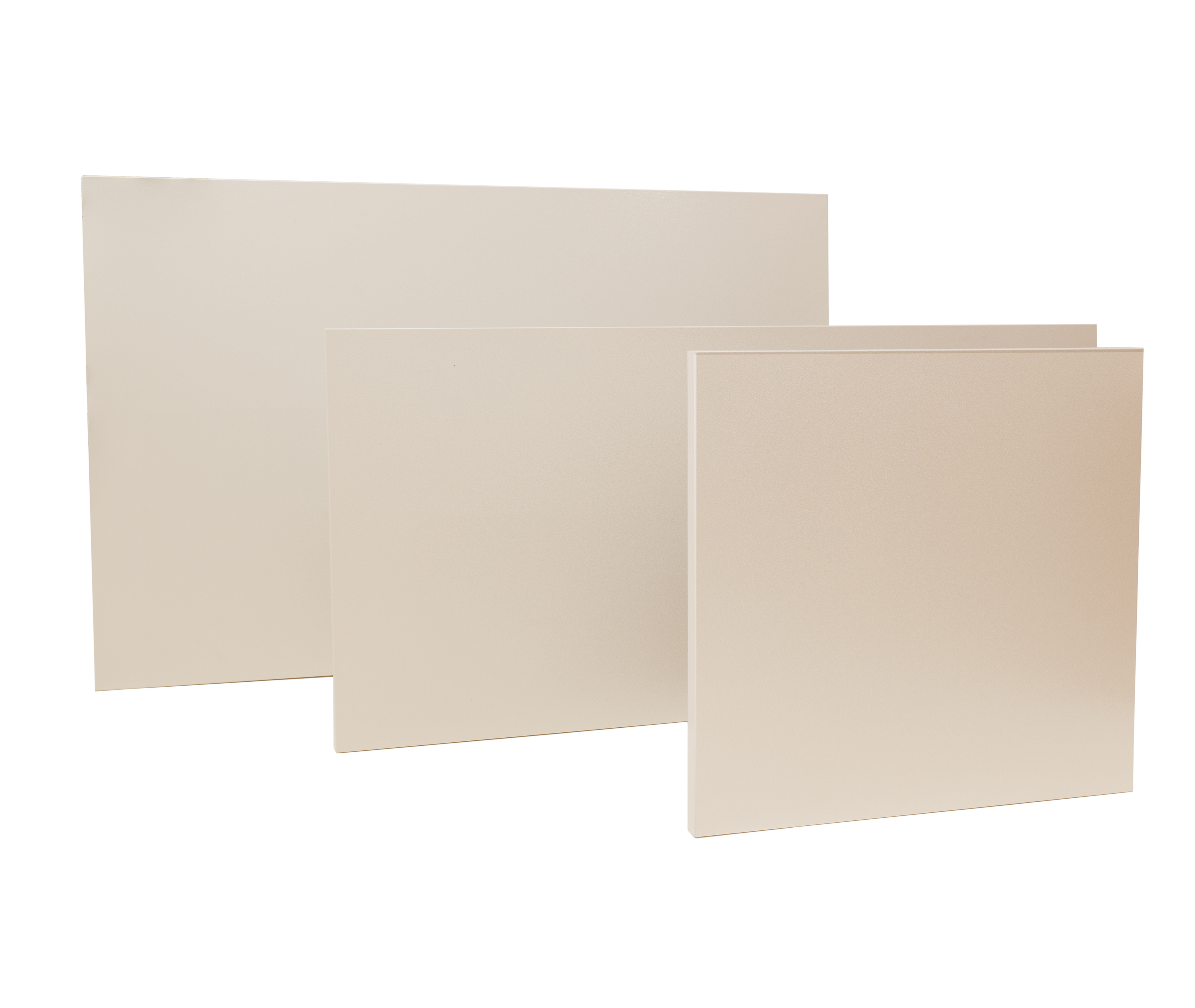

- Three sizes: 300W, 600W and 850W
- 5-year manufacturer's warranty
Controls
For the best comfort and lowest running costs, run the panel from a room thermostat. See our thermostats range, or contact us if you would like help choosing one.
Installation
- Fix to a wall, or to a ceiling using the frame provided. Ceiling height: 2.5 m to 4.0 m for the 300W and 600W, 3.0 m to 4.0 m for the 850W
- The panel comes with a 1.0 m power cable and should be connected by a qualified electrician
- Need it fitted? Our official installation partner, Standard Electrical Services, can install it for you
- Not sure how many panels you need? Call us on 01342 645021 and we will help you size the room
What's included
- ECOSUN UB infrared panel with 1.0 m power cable
- Ceiling mounting frame
Specifications
| Model | Flexel ECOSUN UB |
|---|---|

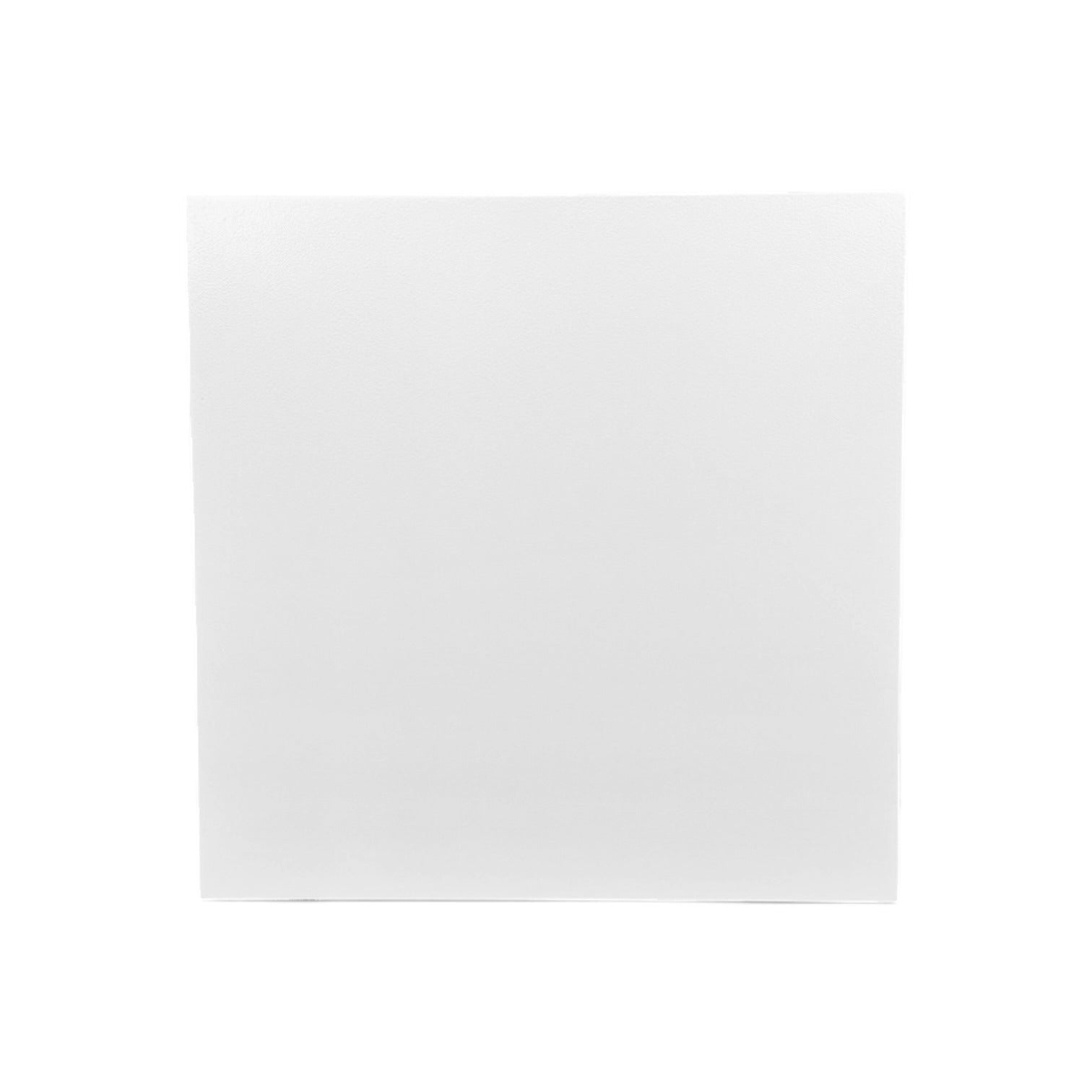

| 300W | 592 x 592 x 30 mm (code 300UB) |
| 600W | 1192 x 592 x 30 mm (code 600UB) |
| 850W | 1192 x 800 x 30 mm (code 850UB) |
| Construction | Galvanised steel, semi-smooth powder coat, insulated rear |
| Colour | White (RAL 9010) |
| Mounting | Wall or ceiling |
| Ceiling mounting height | 300W and 600W: 2.5 m to 4.0 m. 850W: 3.0 m to 4.0 m |
| Power cable | 1.0 m |
| Safety | Thermal overload protection |
| Origin | Made in the Czech Republic |
| Warranty | 5 years |
