Connection Crimps
Connection Crimps
Price includes VAT Shipping calculated at checkout.

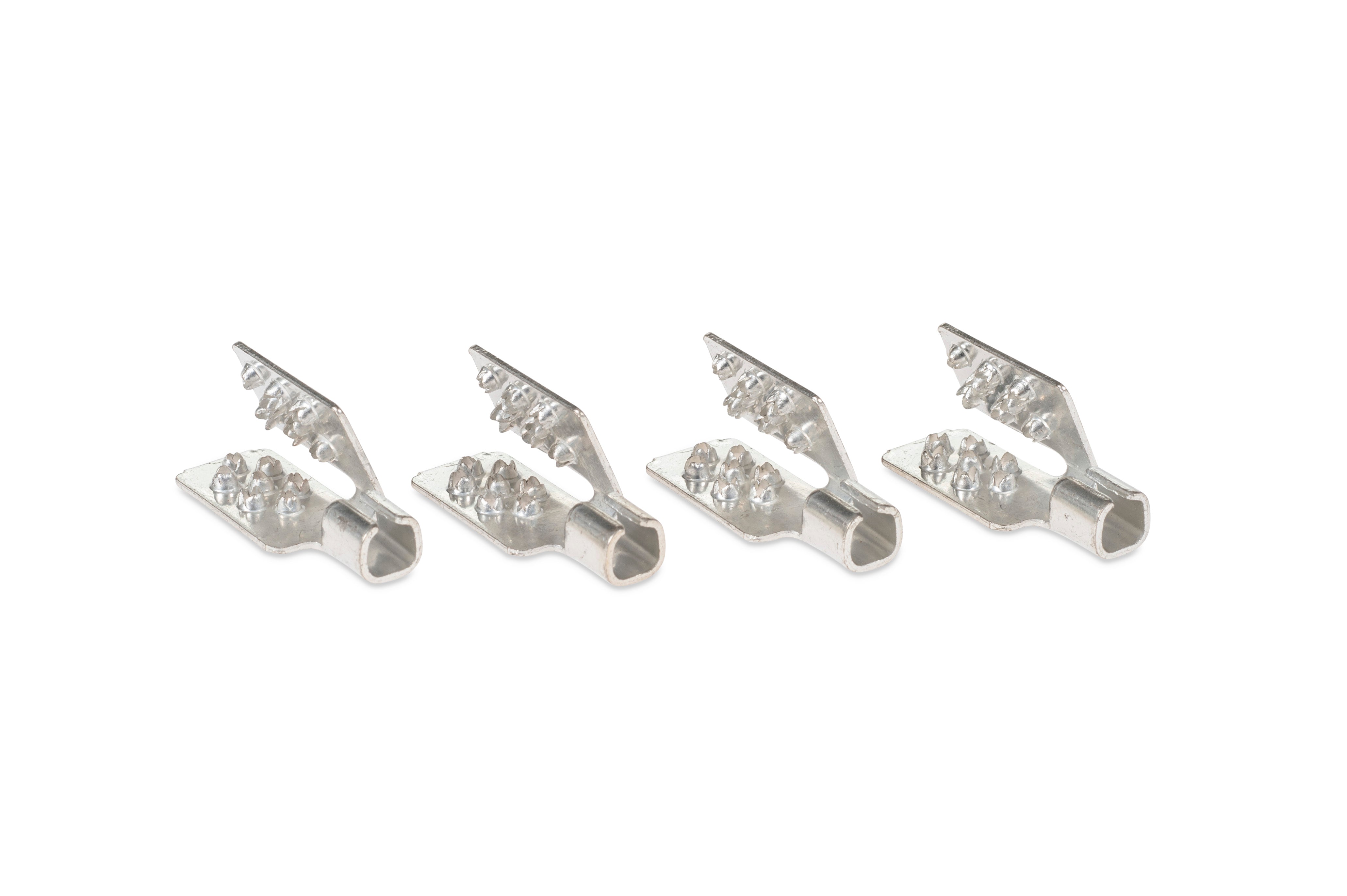

Our steel connection crimps join the cold tail leads to the copper busbars of carbon underfloor heating film. Pressed on with a ratchet crimping tool, each one makes a firm and lasting electrical joint where the cable meets the film.
Sold in packs of 10, with quantities up to 50 available.
Full features, controls, installation notes and specifications are below.
Key features
- Steel crimps made for connecting cable to the busbars of carbon heating film
- Give a secure, stable joint between the cold tail leads and the film
- Fitted with our ratchet crimping tool for an even, consistent crimp
- Available in packs of 10, 20, 30, 40 or 50
How many do I need?
Each film strip connection uses two crimps, one on each busbar. For example, a room laid with 6 strips of film needs 12 crimps.
Installation
- Fit a crimp onto each busbar at the connection end of the film strip.
- Insert the stripped end of the cold tail into the crimp and close it with the ratchet crimping tool.
- Insulate every crimp on both sides of the film with bitumen insulation tape.
- Seal the busbar ends at the other end of each strip with termination discs.
The final connection to the mains supply must be made by a qualified electrician. Our official installation partner Standard Electrical Services can carry out the full installation. Questions? Call 01342 645021 or contact us.
Specifications
| Material | Steel |
| Use | Connecting cold tail leads to carbon heating film busbars |
| Crimps per strip connection | 2 |
| Pack sizes | 10, 20, 30, 40 or 50 crimps |
| Also needed | Ratchet crimping tool, bitumen insulation tape, termination discs |
