Cold Tail Leads
Cold Tail Leads
Discount: 0% off
Price includes VAT
Double insulated stranded copper cable with brown or blue outer insulation, used to connect the heating film to the thermostat circuit. Suitable for Class II underfloor heating systems where double insulated components are required.
As a guide, one 10m length of each colour per room (around 15m²) is typically sufficient.
Product Description

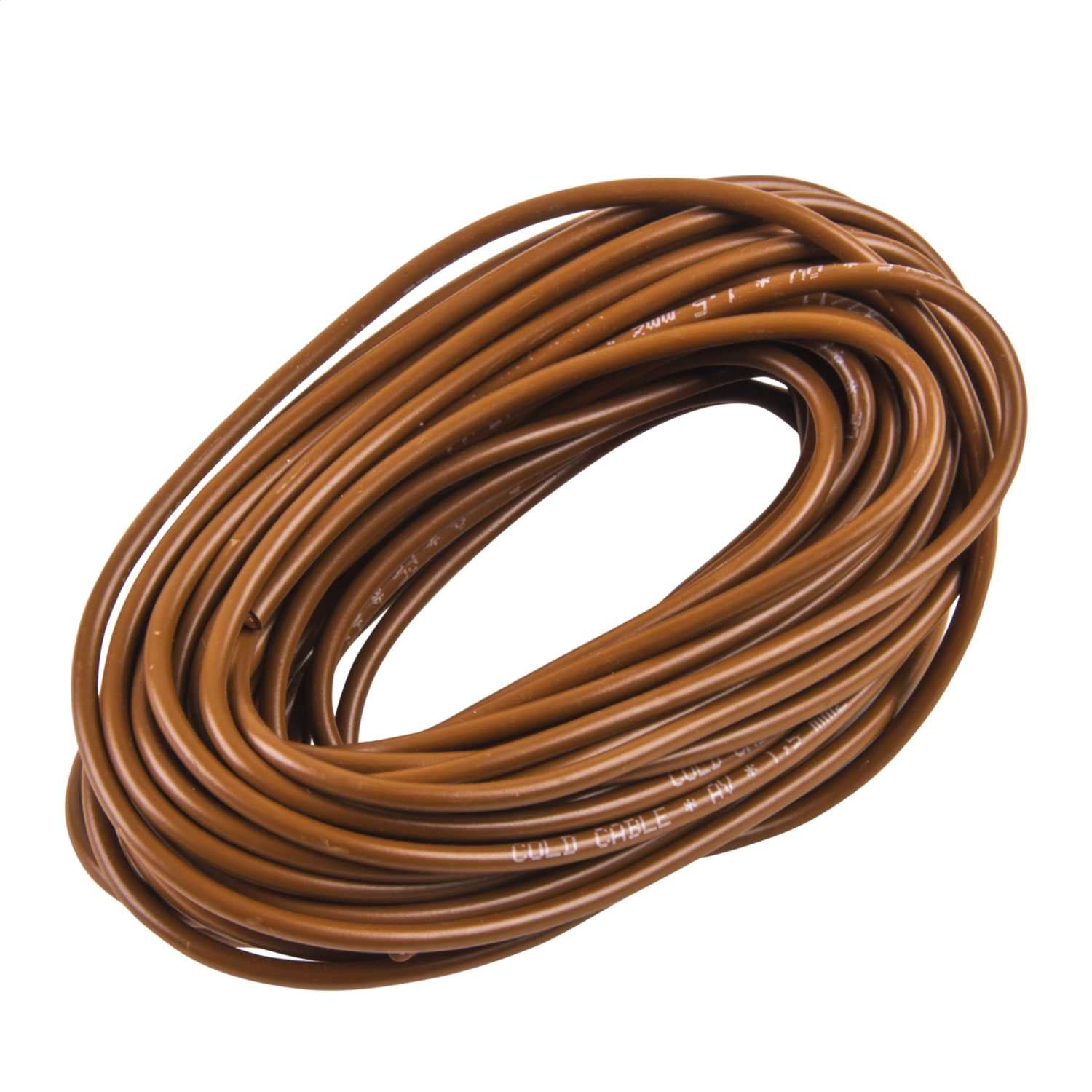

Cold Tail Leads (Double-Insulated Flexible Cable) – 1.5mm² (Brown / Blue)
These double-insulated flexible copper cold tail leads are used to connect heating film to the thermostat circuit. They are also used to link individual heating film strips together.
They are suitable for Class II underfloor heating systems where double-insulated components are required.
Availability & Supply
Sold per colour (brown or blue) and available in 10m increments.
If you select multiple units (e.g. 2 × 10m), the cable will be supplied as one continuous, uncut length (e.g. 20m). 100m drums are also available for larger projects.
Technical Specification
- Conductor cross-sectional area: 1.5mm²
- Cable type: Double-insulated flexible copper
- Standard: Tri-rated to BS 6231
- Temperature rating: 105°C
