Flexel Ecoflex Pipe Freeze Protection Cable
Flexel Ecoflex Pipe Freeze Protection Cable

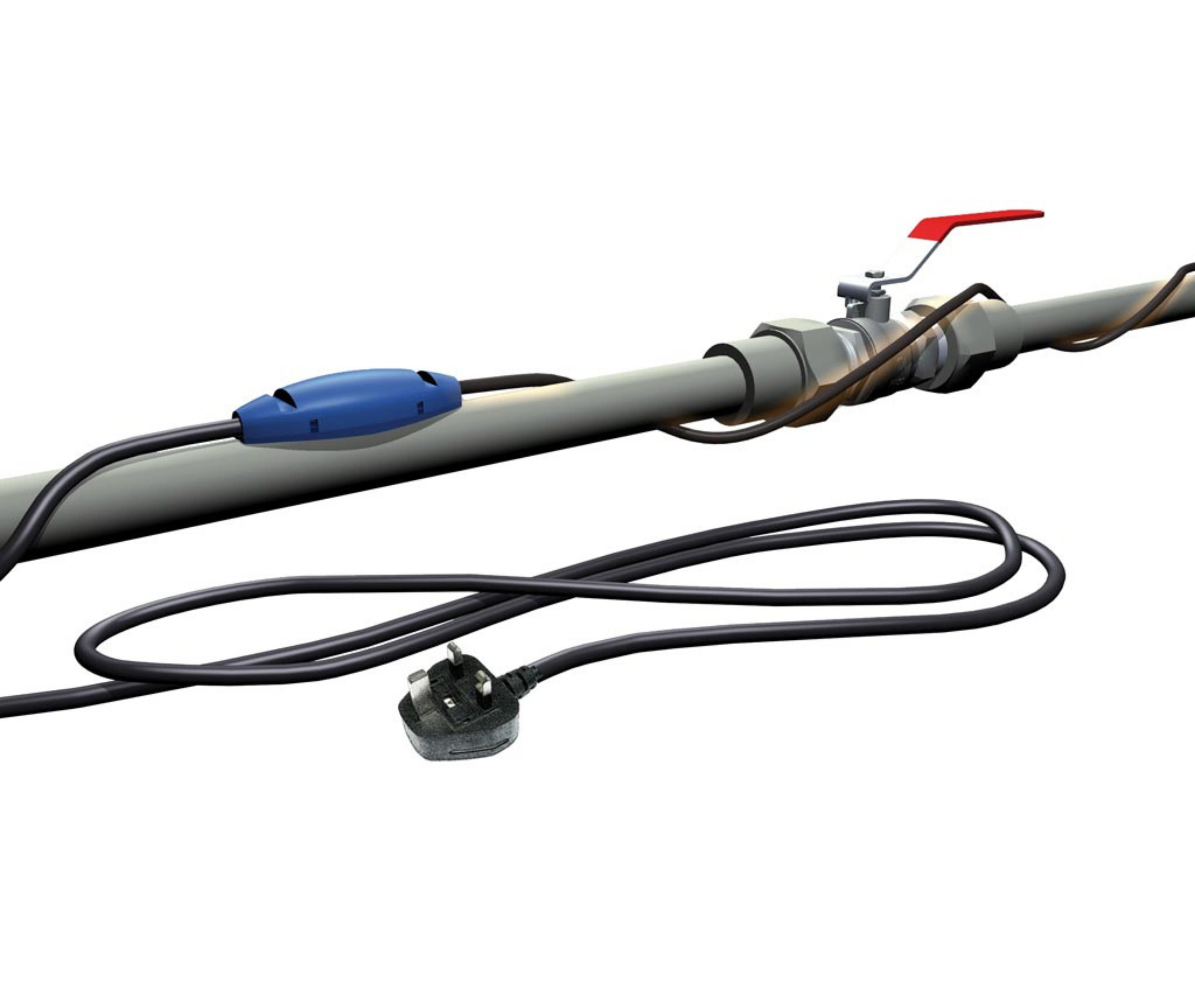

A ready-to-use kit for stopping pipes from freezing in homes and small commercial buildings. The heating cable comes pre-terminated with its own pipe thermostat, a 1.5 m lead and a 3-pin plug, so there is nothing to wire up: fix it to the pipe, insulate and plug in.
It is a low-cost answer for boiler condensate pipes, outside taps and waste pipes, and pipework in lofts, garages and outbuildings, on metal or plastic pipe up to 50 mm in diameter.
Full features, controls, installation notes and specifications are below.
Key features
- Fixed resistance heating cable supplied fully terminated, with a pipe thermostat already fitted
- The thermostat turns the cable on when the pipe drops below +3 °C and off again once the pipe is safely above freezing, so it only uses power when needed
- Plug-in connection via a 1.5 m cold lead and 3-pin plug
- For metal and plastic pipes up to 50 mm diameter
- Choice of nine lengths from 2 m to 42 m
Typical uses
- Boiler condensate pipes
- Outside water supply pipes and taps
- External and unheated waste pipes
- Pipework in lofts, garages, sheds and other outbuildings
Installation
- Run the cable in a straight line along the pipe; choose a length that matches the run of pipe to be protected
- Secure it with PFP fixing tape (not included)
- On plastic pipe, Alu50 aluminium foil tape (not included) must also be used to spread the heat evenly
- The pipe and cable must then be insulated with flame-retardant pipe insulation no thicker than 20 mm
- Plug into a suitable socket outlet; if you would prefer a new outlet or a fused spur, our official installation partner, Standard Electrical Services, can help
What's included
- Heating cable of your chosen length with built-in pipe thermostat, 1.5 m cold lead and 3-pin plug
Specifications
| Cable type | Fixed resistance, pre-terminated |
| Control | Built-in pipe thermostat, switches on below +3 °C |
| Pipe size | Metal or plastic, up to 50 mm diameter |
| Lengths available | 2, 3, 4, 6, 10, 14, 21, 30 and 42 m |
| Connection | 1.5 m cold lead with 3-pin plug |
| Insulation required | Flame-retardant, up to 20 mm thick |
| Fixing | PFP fixing tape; plus Alu50 aluminium tape on plastic pipe |
| Warranty | 2 years |
Need advice?
Not sure which length you need? Call us on 01342 645021 or get in touch with the length and size of the pipe and we will recommend the right kit.
Description
A ready-to-use kit for stopping pipes from freezing in homes and small commercial buildings. The heating cable comes pre-terminated with its own pipe thermostat, a 1.5 m lead and a 3-pin plug, so there is nothing to wire up: fix it to the pipe, insulate and plug in.
It is a low-cost answer for boiler condensate pipes, outside taps and waste pipes, and pipework in lofts, garages and outbuildings, on metal or plastic pipe up to 50 mm in diameter.
Full features, controls, installation notes and specifications are below.
Product Variation
| Product Code | Length (m) | Voltage | Wattage | Price | |
|---|---|---|---|---|---|
| PFP2 | 2 | 230 | 20 | £75.38 GBP | |
| PFP3 | 3 | 230 | 30 | £79.73 GBP | |
| PFP4 | 4 | 230 | 40 | £81.01 GBP | |
| PFP6 | 6 | 230 | 72 | £86.00 GBP | |
| PFP10 | 10 | 230 | 136 | £94.87 GBP | |
| PFP14 | 14 | 230 | 152 | £102.69 GBP | |
| PFP21 | 21 | 230 | 281 | £121.48 GBP | |
| PFP30 | 30 | 230 | 337 | £136.56 GBP | |
| PFP42 | 42 | 230 | 490 | £168.73 GBP |
Product Variation
| Product Code | Description | Price |
|---|
Video Installation
Pipe Frost Protection Kit
